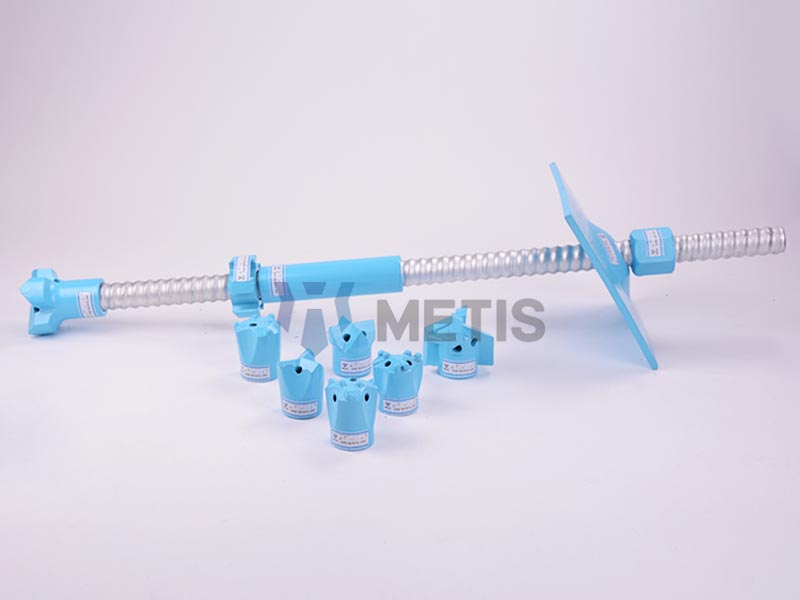

R32 Anchor Bolt

• Brief Introduction
R32 anchor bolt is is extensive applied in all kinds of constructions, such as railway system, metro project and infrastructure development. As an efficient anchoring method, it’s also widely applied to pre-support project, radial support project, slope stabilization, foundation support project, soil nail wall, back pull anchor rod retaining wall and other rock supporting work.

• Specifications

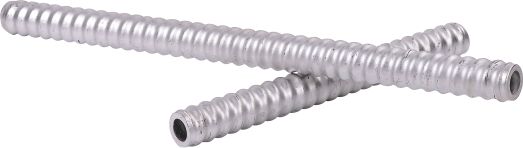

Hollow Anchor Bar

Sample		Size		Outer Dia. (mm)		Inner Dia. (mm)		Ultimate Load (KN)		Yield Load (KN)		Weight (Kg/m)		Thread
		R32L		32		20		210		160		2.9		ISO 10208
		R32N		32		20		280		230		2.9		ISO 10208
		R32N		32		18		280		230		3.4		ISO 10208
		R32S		32		18		360		280		3.4		ISO 10208
		R32S		32		14.5		360		280		4.1		ISO 10208

1.Self drilling system eliminates the requirement for a cased borehole.
2. Installation with simultaneous drilling and grouting possible.
3. Easy installation in all directions, also upwards.
4. Reliable, efficient and convenient, which makes high piling output possible.
5.Anchor bars can be cut and lengthened according to your demands. It applies to narrow space.

•Application
• Railway System
• Metro Project
• Mining
•Slope Stabilization
• Hydroelectric Station
•Infrastructure Development
